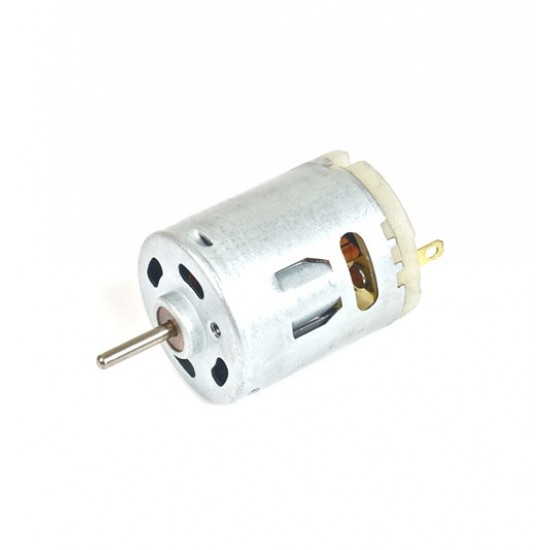

S365 (MM36) High Torque 12V DC motor

High torque 5 pole DC motor with wide operating range 12-24V. Suitable for water pumps, robotics etc. Rotation is counter-clockwise as viewed from shaft end.

• Dimensions: L: 32.5 (exc. shaft) x 27.5mm dia.
• Shaft: 12.8mm long x 2.3 dia.
• Weight 52g approx.
• Mounting holes 2 x M2.6 x 0.45 tapped.

RoHS compliant

• Operating range: 12-24V (nominal 18V)
• No load speed: 18000 RPM ±10%
• No load current: 0.32A
• Load speed: 14350 RPM ±8%
• Current at max. efficiency: 1.3A
• Rated load (with fan) 65g-cm
• Output: 0.42W
• Torque: 11.6g-cm
• Stall torque: 55g-cm min.
• Stall current: 1.4A max.
